Channel Letter Signs: Types, Materials & Lighting Options for Businesses

Channel letter signs are the most popular choice for storefront signage because they combine bold visibility during the day with a bright, professional glow at night. Choosing the right type, materials and LED lighting can make the difference between a sign customers remember and one they drive right past.

This guide explains every major type of channel letter sign, including front-lit, halo-lit, combination and open-face letters, along with materials, lighting options, mounting methods and design tips. If you're planning illuminated signage for a business in San Francisco or anywhere in the Bay Area, you'll know exactly what to ask for by the end.

What Are Channel Letter Signs?

Channel letter signs are three-dimensional, individually fabricated letters and logo shapes, usually lit from inside with LEDs. Each letter has a metal "can" with sides (called returns), a back, and often a translucent acrylic face that lets light shine through.

Because each letter stands on its own, channel letters look crisp and professional in daylight and glow brightly at night. That is why they are the most common sign type on shopping centers, restaurants, banks, gyms and office buildings and one of the best long-term advertising investments a storefront can make.

At Martin Sign, we design, permit, fabricate and install LED dimensional letters for businesses across San Francisco and the Bay Area. This guide explains the options so you can choose with confidence.

Types of Channel Letter Signs

Front-lit channel letters

The classic style. LEDs inside the letter shine through a colored acrylic face, so the whole face glows. Front-lit letters offer the strongest nighttime visibility and the widest color choice, making them ideal for retail and quick-service restaurants.

Reverse-lit (halo-lit) channel letters

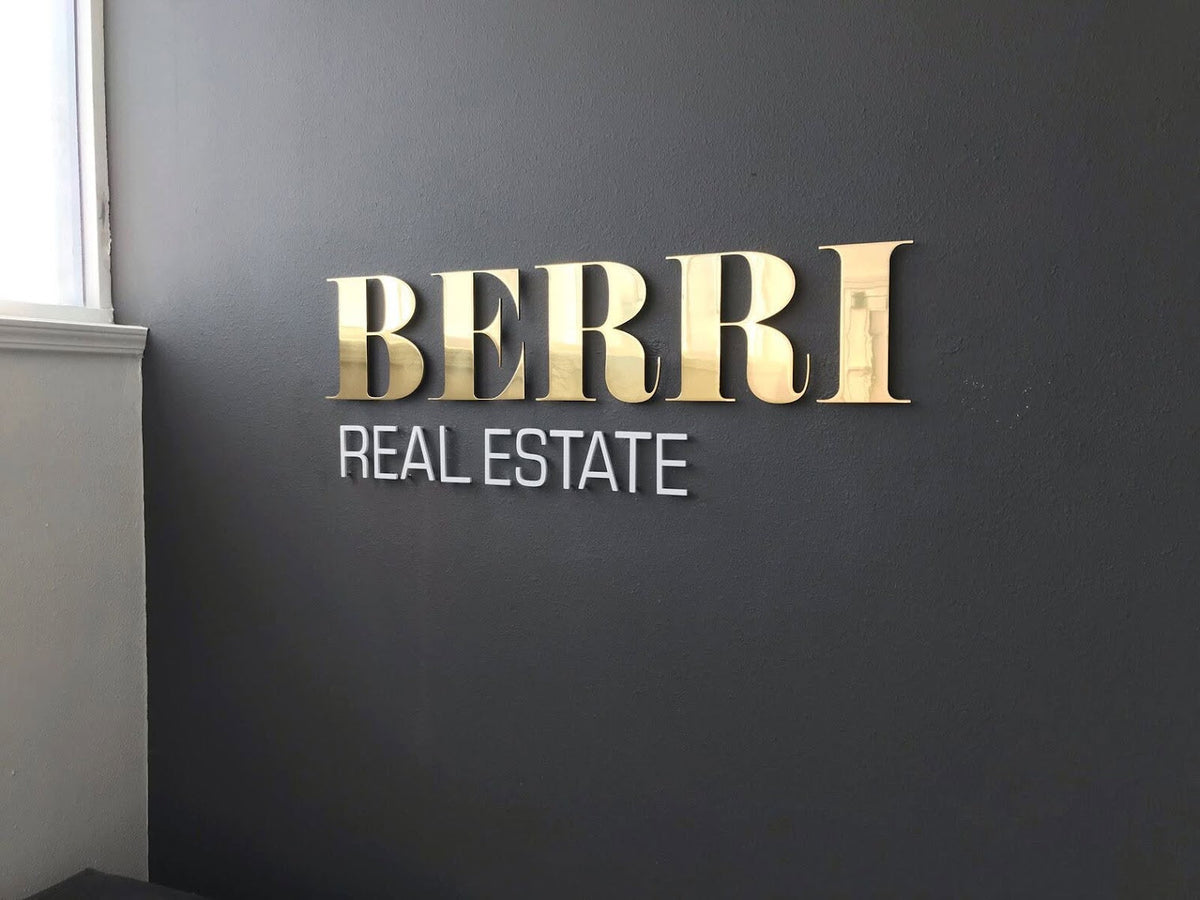

The face and returns are solid metal, and LEDs shine backward onto the wall. The result is a soft glowing outline or "halo" around each letter. Halo-lit letters feel upscale and understated popular with corporate offices, salons, boutiques and hotels.

Combination (front- and back-lit) letters

These letters glow through the face and create a halo behind. They deliver maximum impact and a premium, layered look for flagship locations.

Open-face channel letters

Open-face letters expose the light source, often with exposed LED neon or bulbs, creating a vintage marquee or retro feel. They work well for entertainment venues, bars and restaurants.

Non-illuminated dimensional letters

For businesses that close before dark or want a minimal look, non-illuminated dimensional letters in metal, acrylic or wood offer the same depth without electrical work.

Channel Letter Materials

• Aluminum returns and backs: The industry standard. Lightweight, rust-resistant and easily painted to any brand color.
• Stainless steel: A premium option for halo-lit letters, with brushed or polished finishes.
• Acrylic faces: Translucent acrylic diffuses LED light evenly. It comes in dozens of colors, and printed or applied vinyl can match exact brand colors.
• Polycarbonate faces: More impact-resistant than acrylic, useful in areas where vandalism or hail is a concern.
• Trim cap: The plastic edge that joins the face to the returns. It can match the face, the returns or an accent color.
• Painted finishes: Returns can be painted to contrast with the face for extra depth, or matched for a seamless look.

Lighting Options for Channel Letters

LED modules

Modern channel letters use LED modules instead of neon tubes. LEDs use far less energy, run cooler, last much longer and are available in white and many colors. They also make maintenance simpler.

Color and color temperature

White LEDs come in cool, neutral and warm tones. Cool white makes colored faces look vivid, while warm white pairs beautifully with brass or bronze halo-lit letters. RGB LEDs can change colors for seasonal or event effects.

Controls and scheduling

Photocells turn the sign on at dusk, and timers shut it off after hours. Both save energy and help meet any local illumination-hour rules.

LED neon accents

For extra personality, custom LED neon signs can complement channel letters on window displays and interior walls.

Mounting Options

1. Direct (flush) mount: Each letter is fastened directly to the wall. Clean look, but requires more wall penetrations.
2. Raceway mount: Letters sit on a shared metal box that holds the wiring. Fewer wall holes and easier installation, which landlords often prefer. The raceway can be painted to match the wall.
3. Wireway / backer panel: Letters mount on a larger painted panel — useful for uneven surfaces or when you want a defined background.
4. Stand-off mount: Used for halo-lit letters, spacing them away from the wall so the light can spread.

Design Tips for Channel Letter Signs

• Size for distance. Roughly 1 inch of letter height per 10 feet of viewing distance is a common guide. Signs seen from roads need larger letters.
• Simplify thin details. Very thin strokes and tiny logo elements are hard to fabricate and light evenly. Your sign designer can adapt the logo for fabrication.
• Use contrast. A dark wall makes front-lit letters pop; a light, smooth wall is best for halo effects.
• Mind the stroke width. Letters need enough width inside for LEDs to fit and light evenly.
• Check building and city rules. Landlords, shopping centers and cities often set limits on size, colors, illumination and mounting. In most Bay Area cities, channel letter signs require a sign permit and electrical approval.

Maintenance and Lifespan

Well-built LED channel letters can last many years. Keep faces clean, check for water intrusion after storms, and replace failed LED modules or power supplies promptly. Choosing a company that offers warranty coverage on LEDs and electrical components protects your investment.

Why Choose Martin Sign for Channel Letters

Martin Sign handles your channel letter project from start to finish: design, engineering drawings, permitting, fabrication, code-compliant electrical work and professional installation. We serve businesses in San Francisco, San Jose, Santa Clara, Palo Alto and throughout the Bay Area. See real projects in our portfolio.

Frequently Asked Questions

What is the difference between front-lit and halo-lit channel letters?
Front-lit letters glow through their acrylic face. Halo-lit letters have solid faces and shine light backward onto the wall, creating a glowing outline.

Are LED channel letters energy efficient?
Yes. LEDs use significantly less electricity than traditional neon and last much longer, lowering both energy and maintenance costs.

Do channel letter signs need a permit?
In most Bay Area cities, yes. Illuminated signs usually require both a sign permit and electrical approval, plus landlord sign-off.

How long do channel letter signs last?
With quality materials and basic maintenance, LED channel letters commonly provide many years of service.

Raceway or direct mount which is better?
Raceway mounting is faster to install and needs fewer holes in the wall. Direct mounting gives a cleaner, floating look. Your building's requirements often decide.
